Ballard™ 7Day
Closed Suction System
Introducing the newest addition to the Ballard Closed Suction System portfolio. The Ballard 7Day Closed Suction System is a simplified, streamlined, easier-to-use portfolio of products for patients with an artificial airway for more than 72 hours. With a new look, clear adapter, and turbulent cleaning technology, these products empower clinicians with the flexibility to change out the catheter as needed, up to 7 days use, while retaining confidence in the quality and reliability of the product they are accustomed to with the Ballard brand.
MR Safe and not made with DEHP/latex.
T-Piece Styles Available
Tracheostomy Lengths Only
- Tethered T-Piece cap
- Numerical indices on all sizes
Double Swivel Elbow Style
Endotracheal Length

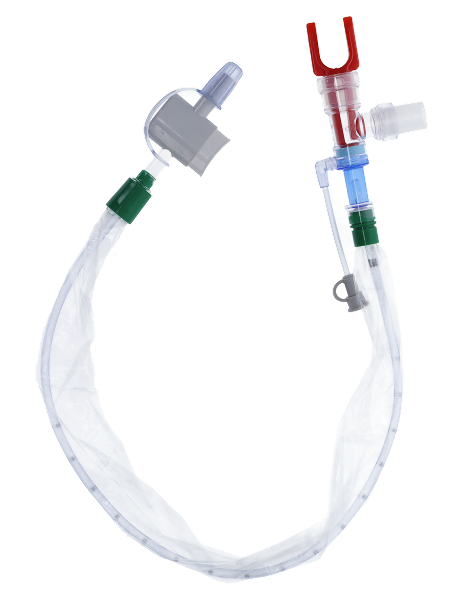

Ballard™ 7Day Closed Suction System
- Catheter retracts within the blue isolated turbulent cleaning chamber with a self-closing hinged valve that helps preserve lung volume, and helps maintain normal ventilation, during catheter rinsing.
- Hinged valve also helps reduce PEEP loss and helps prevent inadvertent lavage during catheter rinsing
- Duration of Use: Up to 7 Days
Brand(s): Ballard™
Available in US Only
ITEM | DESCRIPTION | DURATION | SIZE | ADAPTER TYPE | ET/TRACH | LENGTH | ACCESSORIES | PK |
|---|---|---|---|---|---|---|---|---|
72101 | Ballard 7Day Closed Suction System | 7 Days | 10 Fr | Double Swivel Elbow | ET Length | 21.3” / 54 cm | 15 mm x 22 mm Flex Connector | 20 |
72121 | Ballard 7Day Closed Suction System | 7 Days | 12 Fr | Double Swivel Elbow | ET Length | 21.3” / 54 cm | 15 mm x 22 mm Flex Connector | 20 |
72141 | Ballard 7Day Closed Suction System | 7 Days | 14 Fr | Double Swivel Elbow | ET Length | 21.3” / 54 cm | 15 mm x 22 mm Flex Connector | 20 |
72161 | Ballard 7Day Closed Suction System | 7 Days | 16 Fr | Double Swivel Elbow | ET Length | 21.3” / 54 cm | 15 mm x 22 mm Flex Connector | 20 |
7271035 | Ballard 7Day Closed Suction System | 7 Days | 10 Fr | T-Piece | Trach Length | 12” / 30.5 cm | 22 mm Flex Tube | 20 |
7271235 | Ballard 7Day Closed Suction System | 7 Days | 12 Fr | T-Piece | Trach Length | 12” / 30.5 cm | 22 mm Flex Tube | 20 |
7271435 | Ballard 7Day Closed Suction System | 7 Days | 14 Fr | T-Piece | Trach Length | 12” / 30.5 cm | 22 mm Flex Tube | 20 |
7271635 | Ballard 7Day Closed Suction System | 7 Days | 16 Fr | T-Piece | Trach Length | 12” / 30.5 cm | 22 mm Flex Tube | 20 |
Simplified
- Change out only as needed (up to 7 days use)
- No need to disconnect for MRI use
- Depth marks on all styles and sizes
- Catheter protection during transport (suction port dust cover, T-piece cover)
Streamlined
- 8 SKUs only
- Simplified ordering
Easier-to-Use
- Clinicians empowered to change out only as needed (up to 7 days use)
- No need to disconnect for MRI use
- Irrigation port compatible with luer slip, luer lock syringes, and saline bullets
Seven Days, One
Simplified Solution

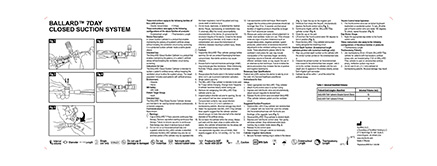

With depth markings on all catheter styles, see how Controlled Depth Suctioning can be used to advance the catheter to within 1 cm of the artificial airway (See IFU for details).
30+ Years of Innovation
in Closed Suction
