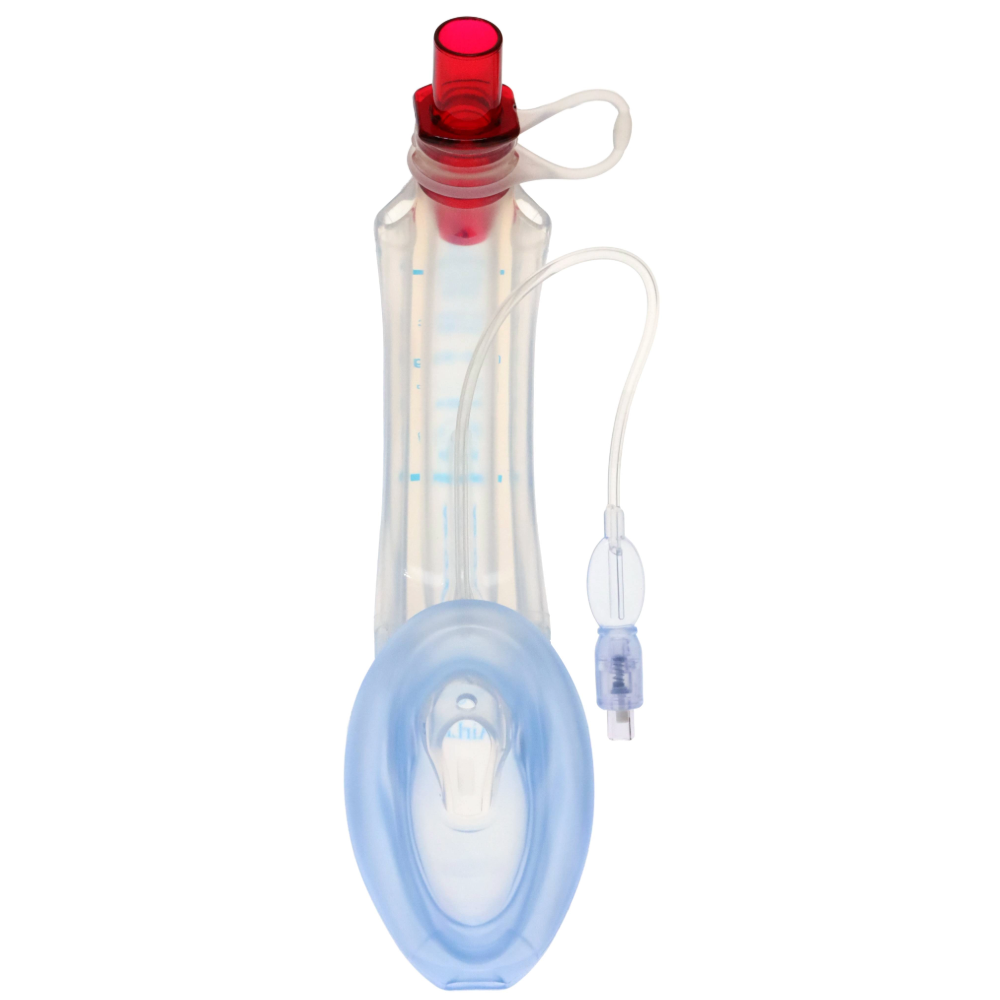

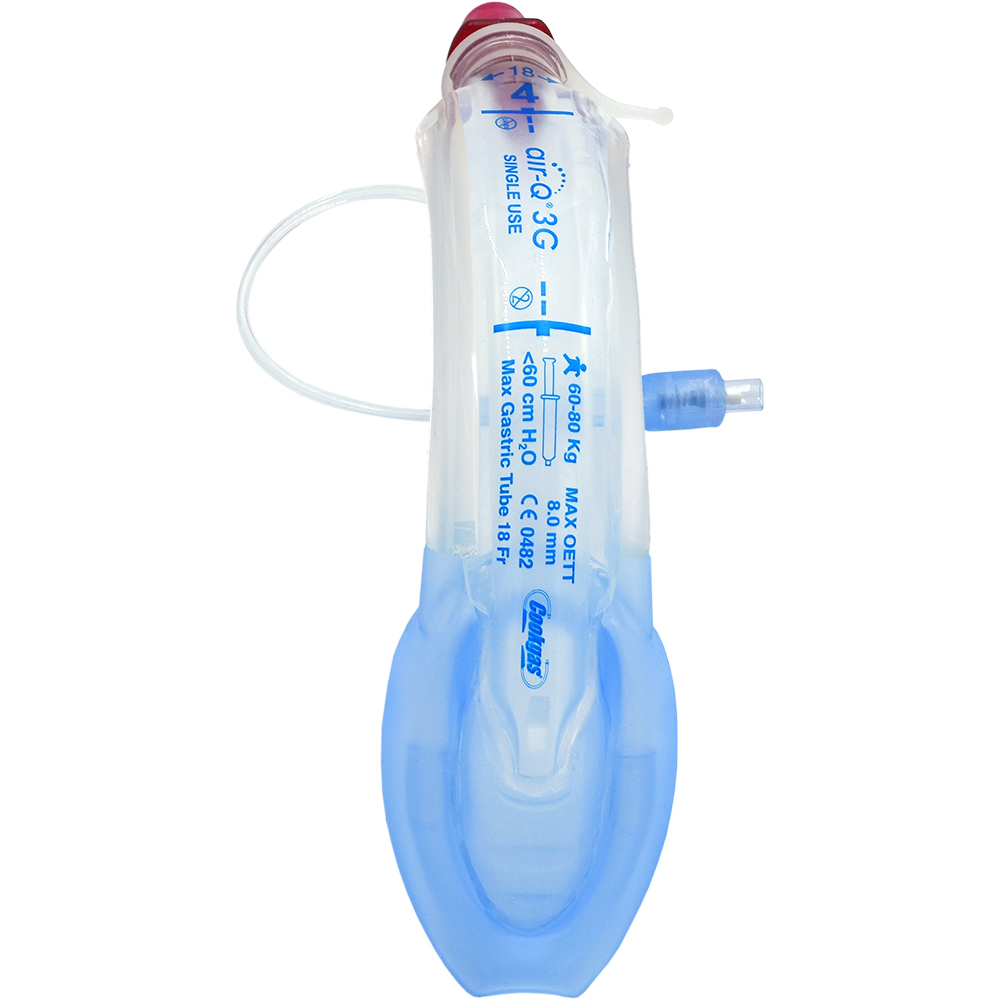

Air-Q3G Supraglottic Airway with Gastric Access

This Item is Part of AirLife Secure!

The Air-Q3G Intubating Laryngeal Airway w/ Gastric Access includes extra-wide gastric inlet access and dual gastric channels that can accommodate NG tubes up to 18 Fr. It ensures safety and confidence in airway management, regardless of the airway challenges encountered.

  • Features an extra wide gastric inlet access and two gastric channels that accommodate NG tubes up to 18 Fr
  • Helps deliver safety and confidence in airway management, no matter what airway challenges you face
  • Unique ET tube ramp and epiglottis elevator aid in fast, easy, and safe intubations.
  • ET tube ramp helps facilitate intubation and directs the endotracheal tube toward the laryngeal inlet
  • Built-up mask heel for improved seal
  • Color-coded connector for easy size identification
  • Removable tethered connector enables insertion of endotracheal tube through airway tube.
  • Soft medical grade silicone cuff
  • Anatomically curved, medical grade silicone airway tube with integrated bite block
Brand: Air-Q®, Salter Labs®
ItemDescriptionSizeIdeal Body WeightMax. ETTMouth OpeningAir-Q Tube LengthMax. OGInflation VolumeQTY
50005 Air-Q3G0< 2 kg3.0 mm5.0 mm6.0 cm5 Fr0-0.5 mL10
50055 Air-Q3G0.52-4 kg4.0 mm8.0 mm7.0 cm6 Fr0-0.5 mL10
50105 Air-Q3G1.04-7 kg4.5 mm11.0 mm9.0 cm8 Fr0.5-1.0 mL10
50155 Air-Q3G1.57-17 kg5.0 mm14.0 mm11.0 cm8 Fr1.0 mL10
50205 Air-Q3G217-30 kg5.5 mm17.0 mm14.0 cm10 Fr1.0-2.0 mL10
50305 Air-Q3G330-60 kg7.0 mm20.0 mm16.0 cm14 Fr2.0-3.0 mL10
50405 Air-Q3G460-80 kg8.0 mm23.0 mm18.0 cm16 Fr3.0-4.0 mL10
50505 Air-Q3G5> 80 kg9.0 mm25.0 mm20.0 cm18 Fr4.0-5.0 mL10
